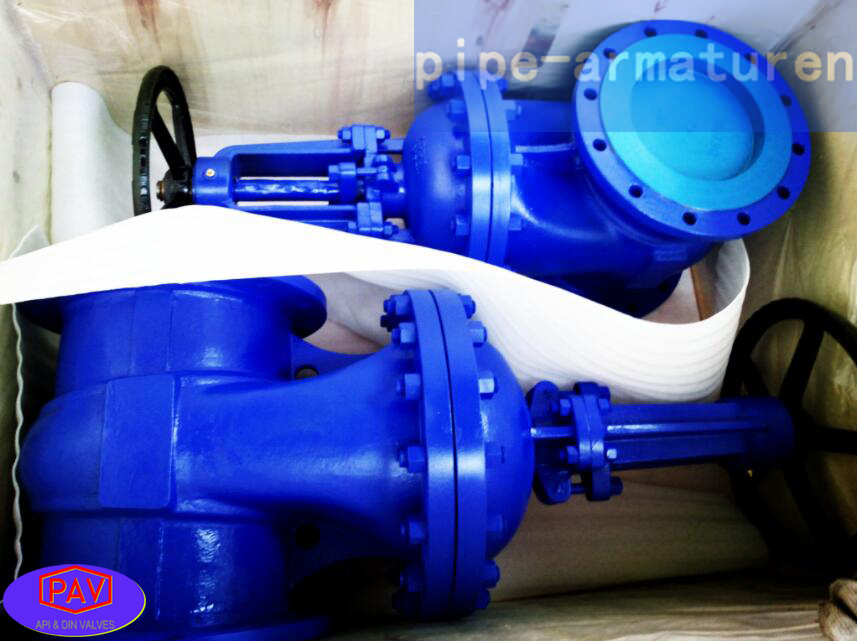

DIN F5 gate valve

Product Numbers: Fig:GV204

Product introduction: Bolted Bonnet(BB),Welded bonnet(WB),Pressure seal bonnet(PSB) Rising stem,Outside Screw and Yoke(OS&Y);Metallic or soft seating surfaces,Parallel Slide Gate Valve,through conduit gate valve.Zasuwy płytowe.through conduit gate valve.Direct Acting & Reverse Acting Gate,Full Port.Through Conduit Expanding Gate Valve, Parallel Slide Gate Valve (PSG)

DESCRIPTION



Operation type(
Through Conduit Gate Valves)
Handwheel,Gear, Electric actuator,Pneumatic actuator,Bare stem,bolted bonnet valves.Through Conduit Gate Valve, Expanding Gate
Standard
Design and Manufacture: EN13709,API 6D,API600,API603,ISO10434,BS1414 or ASME B16.34
Inspection and Test: DIN 3230 EN12266 API 598,API 6D
End flange dimension: DIN 2501 ,ASME B16.5,ASME B16.47(API 605 ,MSS SP44)
BW end dimension: ASME B16.25
Face to face ,end to end: DIN 3202-F5  EN558-1
Pressure-temperature ratings:ASME B16.34
NACE: NACE 0175
Special gate valve
Besides the common gate valves, We also makes cryogenic gate valve(Extended bonnet), bellow sealed globe valve, Jacketed gate valve, with bypass gate valve.By-Pass and Drain Connections,Indicator and Locking Devicesetc.Conduit Gate Valve

Application
widely used in oil, natural gas, long-distance pipelines and gas fields Valves used in forging or casting body, the gate designed with diversion holes, non-diversion holes; single discand double disc structure; Seat used bi-direction seal seat which mainly based on the metal seat sealing and assisted with soft seat sealing as a second type of seal. The series of parallel type gate valve has rational design, compact structure, sulfur resistance, corrosion resistance, wear-resistant, reliable sealing, and light torque of switches, easy-to-use.
Material
ASTM A216 WCB WCC;ASTM A217 WC1 WC6 WC9;ASTM A351 CF8,A351 CF8M,
A351 CF3,A351 CF3M,A351 CN7M;.ASTM A352 LC1 LCB LCC LC3 or by customers
(Cast Steel, Alloy Steel, Stainless Steel, Special Steel).GS-C25,1.0619.
